Polyvinyl acetal enameled with paper insulation CTC
Continuously transposed cable (CTC) is a type of winding wires weaved by certain number of strips of enameled rectangular wires in two ranks according to special tectonics and wrapped by special insulation material. It is mainly used for large-scale oil-immersed power transformers, reactors and large-capacity dry type transformers.
CTC conductor can improve using rate of winding space, min-ish volume and reduce cost, most of all, it decline the loss of circumference and eddy loss caused by leaking of magnetic field and also has advantages of improving machine strength of winding and saving winding time.

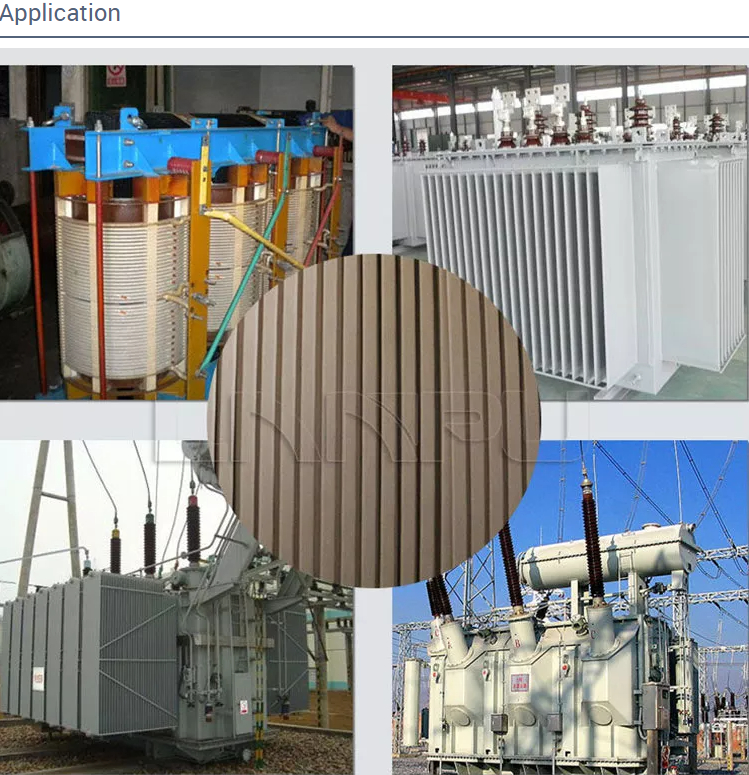

Transposed wire is mainly used in the winding of large oil immersed power transformers,reactors and large capacity dry-type transformers.
Continuously Transposed conductors(CTC)is the important material for transformer winding.It has the advantage of well using of space, low eddy current loss, high mechanical strength and less time of coil winding.
Production Scope
CTC strips:5-80(odd or even).
Max overall dimension :height : 120mm , width 26mm ( tolerance ± 0.05mm )
Dimension of enameled wire:
Single conductor : Thickness a:0.90-3.15mm(tolerance±0.01mm ),
Width b:2.50-13.00mm (tolerance±0.01mm)
Suggested width/thickness ration of single conductor:2.0<b/a<9.0.
Suggested thickness of enamel insulation : 0.08-0.12mm;thickness of bondable epoxy resin:0.03-0.05mm .
Product Scope
Polyvinyl acetal enameled CTC with paper insulation
Polyvinyl-adhesive acetal enameled CTC with paper insulation
Polyvinyl-adhesive acetal semi-hard acetal enameled CTC with paper insulation
Polyvinyl acetal enameled CTC with special binded
Composite CTC with step
Composite CTC with screen wire inside
Polyesterimide enameled CTC
Polyvinyl alcohol enameled CTC with PET film insulation
| number of strips: | 7-49 |
| single dimension: | thickness of conductor a : 1.00-3.15mm width of conductor b : 3.00-12.50mm |
| suggested ratio of width and thickness: | 2.5 < b/a <7.5 |
| please connect us if your dimension is out of above range Insulation layers: | 24 |
| layers at one time. Max thickness of CTC: | 80mm (excluding insulation) |
| max width: | 26mm (excluding insulation) |
| Max.Height of CTC bundles: | 80mm (excluding paper insulation) |
| Max. Width of CTC bundles: | 26mm (excluding paper insulation) |
