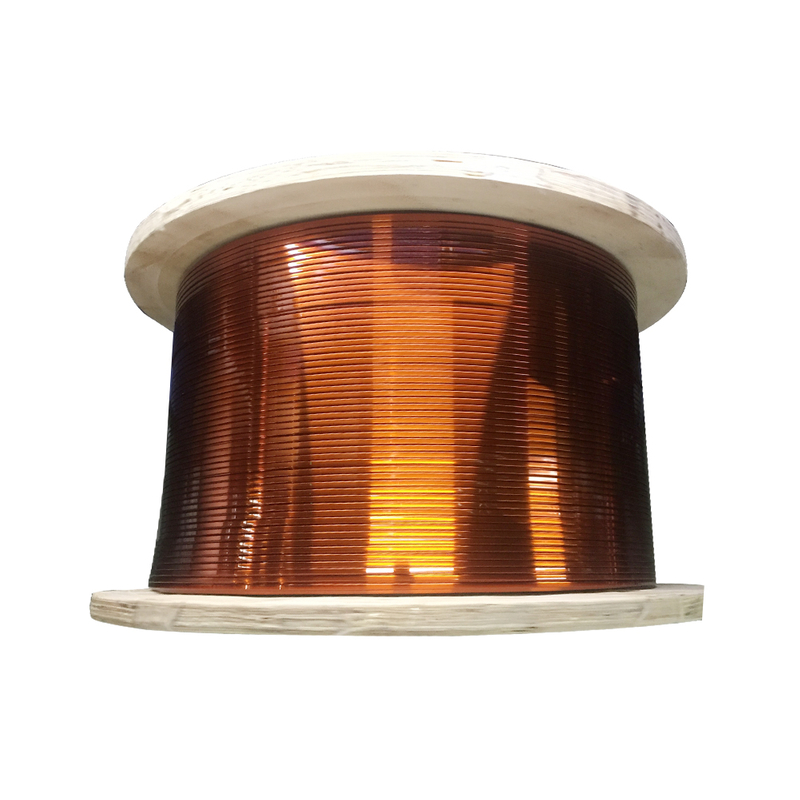

120 polyvinyl acetal self adhesive polyvinyl acetal enameled flat wire

Enameled Flat wire is made of oxygen free copper or electrical aluminum rod, which are drawn or extruded by the specification mould.They are mainly used in the windings of electrical equipment such as transformer,reactor and et cetera.According to the different insulating paint, it can be divided into 6 categories:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • QQ/QQN

  • Baiwei ELECTRIC

  • 8544110000

Enameled Flat wire is made of oxygen free copper or electrical aluminum rod, which are drawn or extruded by the specification mould.They are mainly used in the windings of electrical equipment such as transformer,reactor and etc.According to the different insulating paint, it can be divided into 6 categories:

120 polyvinyl acetal / self adhesive polyvinyl acetal enameled copper (aluminum ) flat wires--QQ/QQN

130 polyester enameled flat wires--QZ

155 modified polyester enameled flat wires-QZG

180 polyester imide enameled copper ( aluminum ) flat wires--QZY

200 polyester imide / polyamide-imide composite enameled copper( aluminum ) flat wires--Q(ZY/XY)

220 polyamide imide enameled copper ( aluminum ) wires--QXY

Production scope

Conductor thickness--a:0.80-5.60mm

Conductor width--b:2.00-16.00mm

Conductor width ratio: 20:1

Conductor material

Soft copper flat wire of enameled flat wire complies with the provisions of GB5584 2-2009 , when 20℃ , resistivity ≤0.017241Ω.mm²/m ,according to different mechanical strength requirements.

Soft aluminum flat wire of enameled flat wire complies with the provisions of GB5584.3-2009,when 20℃,resistivity≤0.02801Ω.mm²/m.According to different insulation requirements,can choose thin film from 0.06 to 0.11mm or thick film from 0.12 to 0.17mm.The thickness of hot adhesive enameled flat wire self-adhesive layer is generally 0.03 to 0.06mm.Our company monitor the thickness with dielectric loss meter.

The thickness of hot adhesive enameled flat wire self-adhesive layer is generally from 0.03 to 0.06mm.Our company monitor the thickness with dielectric loss meter.


Technical parameter

Enameled wire categoryThermal levelPerformanceStandardExperimental basis

Polyvinyl acetal/Self adhesive acetel

QQ/QQN

120

Good performance of resistance to transformer oil and scratch.Excellent flexibility & adhesion, and good hydrolysis resistance.

In addition to the properties of acetal wire,the product adhesive strength can be reinforced by heating.

GB/T 7095.2-2008

IEC60317-18:2004

GB/T 6758.1-2007

IEC 60851-5

GB/T 4074

IEC 60851

GB/T 4074

IEC 60851

Polyester

QZ

130High mechanical strength,good scratch resistance.Good electrical performance.

GB/T 7095.2-2008

IEC 60317-11:2005

GB/T 4074

IEC 60851

Modified polyester

QZ(G)

155Good shock resistance.High mechanical strength,good electrical & solvent resistance.

GB/T 7095.3-2008

IEC60317-16:1990

GB/T 4074

IEC 60851

Polyester imide

QZY

180Hith heat resistance,good chemical solvent resistance,and heat shock resistance

GB/T 7095.4-2008

IEC60317-28:1990

GB/T 4074

IEC 60851

Polyester imide/polyami-deimide composite layer

Q(ZY/XY)

200Good comprehensive propertiea,such as refrigerant resistance,solvent resistance and radiation resistance

GB/T 7095.6-2008

IEC60317-29:1990

GB/T 4074

IEC 60851

Polyamide imide

QXY

220Good chemical solvent resistanceGB/T 7095.1

GB/T 4074

IEC 60851

as follows:

C1Rp0.2(>100~180)N/mm²,C2Rp0.2(>180~220)N/mm²,C3Rp0.2(>220~260)N/mm².


We can manufacture according to technical specifications provided by customers.

ModelNameProduction specification scope
QQB120 acetal / self adhesive acetal enameled flat wirea:0.80-5.60mm   b:2.00-16.00mm
QZB130 polyester enameled flat wirea:0.80-5.60mm   b:2.00-16.00mm
QZ(G)B155 modified polyester enameled flat wirea:0.80-5.60mm   b:2.00-16.00mm
QZYB180 polyester imide enameled flat wirea:0.80-5.60mm   b:2.00-16.00mm
QYB220 polyamide imide enameled flat wirea:0.80-5.60mm   b:2.00-16.00mm
Q(ZY/XY)B200 polyester imide / polyamide-imide enameled flat wirea:0.80-5.60mm   b:2.00-16.00mm
QQBN120 self adhesive polyvinyl acetal enameled flat wirea:0.80-5.60mm   b:2.00-16.00mm
Paint filmPaint film insulation thickness:δ  mm
Grade 10.06≤δ≤0.11
Grade 20.12≤δ≤0.17



Paint filmMin. breakdown voltage value(effective value):V
Room temperatureHigh temperature
Grade 11000

750

Grade 220001500
