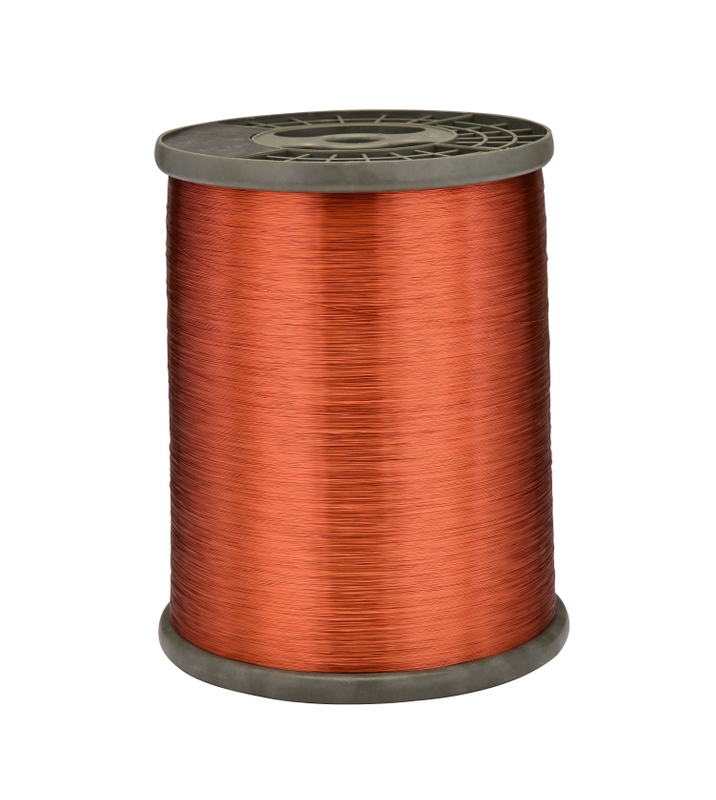

Wearing resistance reactor enameled round aluminum wire

Alcohol soluble type enameled round aluminum wire chemical performance is one of the main types of electromagnetic wire. The bare wire composed of conductor and insulating layer 2 is annealed and softened, then it is repeatedly sprayed and baked. However, it is not easy to meet the production requirements of the standard and the requirements of customers. It is affected by the quality of raw materials, processing parameters, production equipment and environmental factors. Therefore, the quality characteristics of various enameled wires are different But they all have high temperature resistance, mechanical performance, electrical and chemical performance and excellent freezing resistance. They are suitable for refrigerating equipment working at 200 ℃ for a long time, electrical equipment corroded by chemicals, dry-type transformer, oil immersed transformer, epoxy casting transformer and other mechanical and electrical equipment.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Essential details

Place of Origin:  Jiangsu,China

Brand Name: Baiwei Electric

Model Number:Enamel aluminium Wire

Type:insulated

Application:motor,transformer ralays rectifiers,speaker voice

Conductor Material:Aluminum

Conductor Type:Solid

Insulation Material:UEW,UE,PE,EI,AI

Thermal Class: 130-220℃

Al (Min):99.76%

Elongation (≥ %):25%

Standard:AWG SWG IEC NEMA JIS

Packing:PL-4

Dimension:0.1-5.0MM

Varnish Thickness:G1 or G2

Supply Ability
  • Supply Ability:500 Piece/Pieces per Month

Wearing resistance reactor enameled round aluminum wire

Product Description


Conductor Aluminium
Thermal Class (℃) 180 (Class H);200 (Class C);220 (Class C+); 240(Class HC)
Certificate ISO9001 ISO 14001 OHSAS 18001 UI
Application Transformer;motor;generator;modern instrument;welding machine,Electric fans,White appliances
Dimension 0.1-5.0mm


 As the most professional manufacturer of enameled aluminum wire in China, SWAN can produce 40,000 tons of enameled aluminum wire per year, and this capacity is still rising.


Application
* Household Appliances Winding Coils
* Various Electronic Components
* Instrument Coils
* Transformers
* Telecommunications Facilities
* Motors
