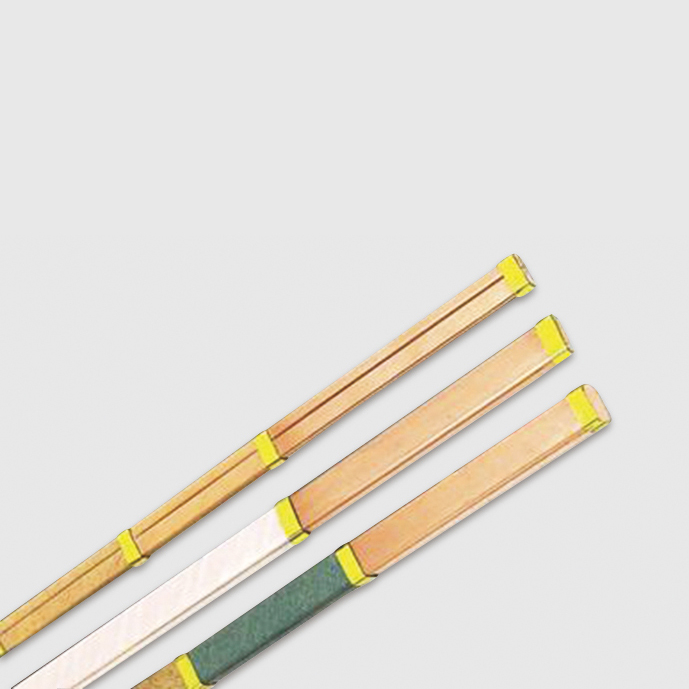

Composite wire is a winding wire composite of several winding wires or copper and aluminum wires arranged in specified requirements,wrapped by specific insulating materials.Composite wire is mainly used in windings of oil-immersed transformer,reactor and other electric devices.
Baiwei Electric is a professional manufacture of copper,aluminum paper covered wire,composite wire.Products are precise in size and shape,suitable in wrapping tightness;their continuous no-joint length is more than 8,000 meters.
Product scope:
Bare flat composite wire
Paper covered composite wire
Enameled composite wire
Film wrapped composite wire
Production scope:
Suggested size of flat wire conductor:
Thickness:1.00~12.00mm, width:3.00~25.00mm, width/thickness ratio:≤20；max.cross-section:200mm²；
Suggested size of round wire conductor：diameter：2.00~5.00mm
Specification of enamelled paper covered wire and enamelled composite wire conductor;
Recommended size of flat conductor: thickness 1.00-3.00 mm; width 5.00-18.00 mm;
Recommended conductor size of round wire: 2.00-5.00mm in diameter;
Specification of bare wire, paper package and film package composite conductor;
Recommended conductor size: thickness 1.00-6.00 mm; width 4.00-20.00 mm; width thickness ratio ≤ 20; maximum cross section 150 mm2.
